Oil Dripper

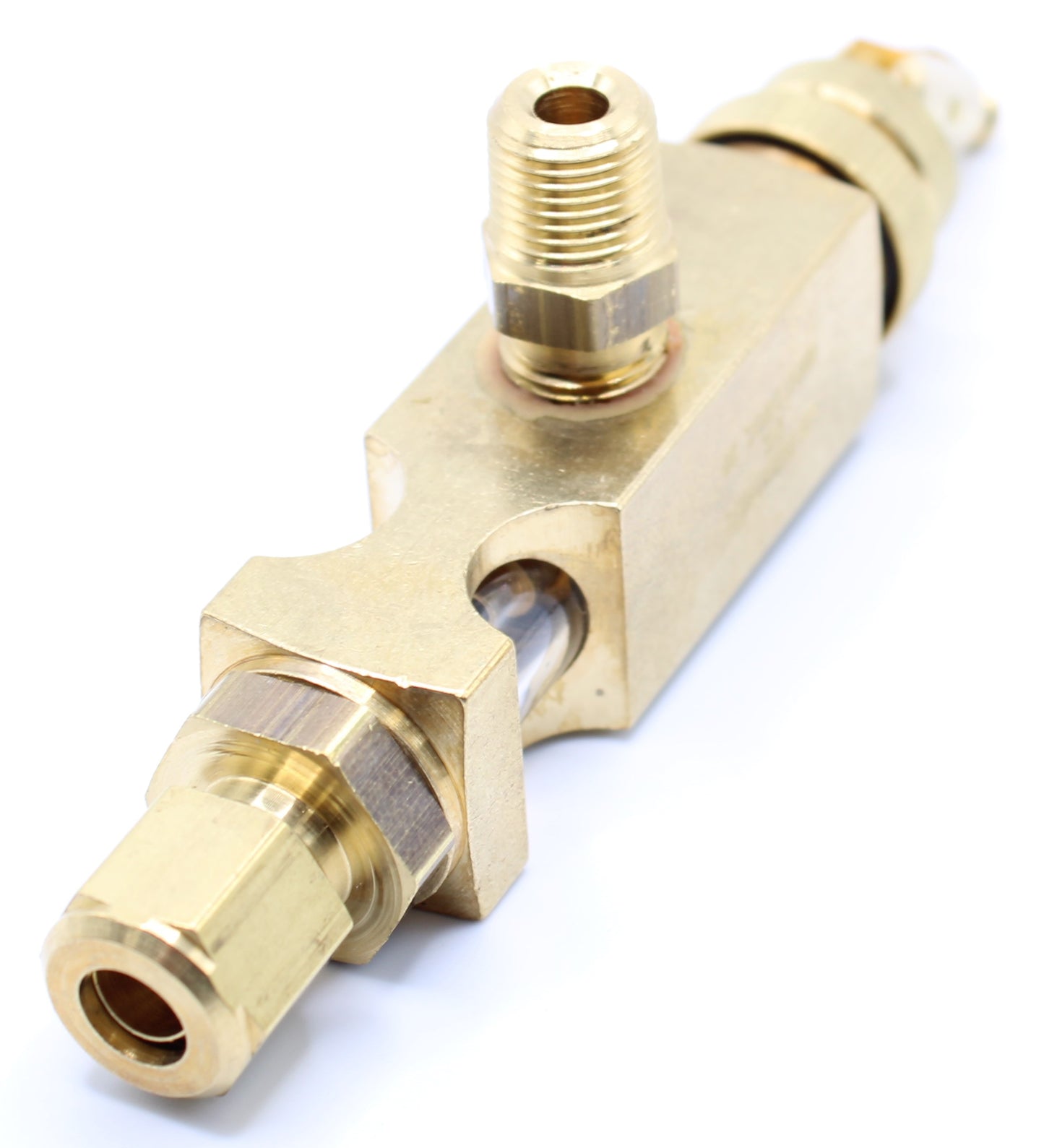

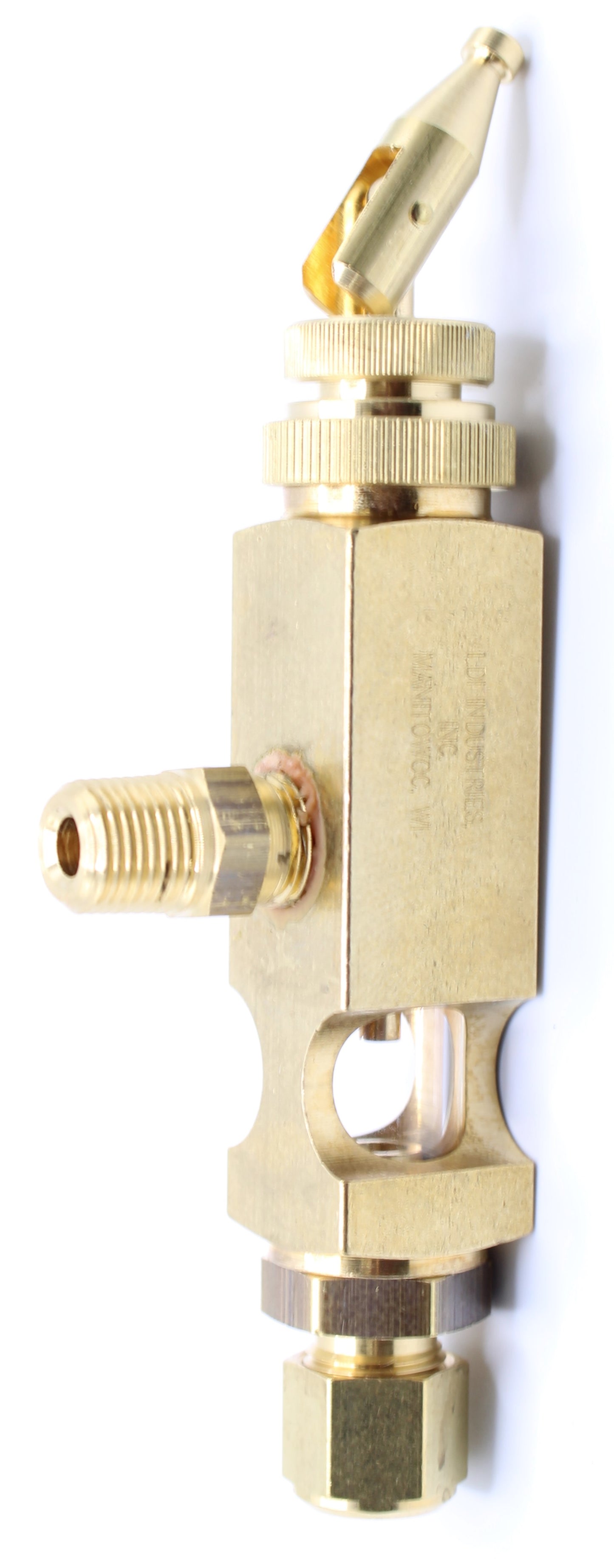

The N470 Series toggle type valves are designed for controlled flow applications that require shutting off at times. This style of valve can be shut off and turned on again without affecting the previous preset drip rate. Fine adjustments can be made and easily locked by the knurled friction lock-ring. The drip rate is clearly visible through the large sight. Gravity feed valves are furnished with a vented sight chamber, provided by a split in the gasket above the sight glass. Valves for pressure applications have a solid gasket in both ends of the sight glass. (Non-vented)

Standard Features:

• Inlet available as 1/8 inch PTF female, 1/8 inch NPTF male or 1/4 inch NPTF male
• Outlet available as 1/8 inch NPTF male or 1/4 inch tube

Standard Materials:

• Brass Construction
• Buna N Seals
• Pipe threads are dryseal
